Janpos Laser Ranging Sensor LS-D1 Series: Compact Design, Powerful Performance

As manufacturing equipment becomes more compact and production requirements continue to evolve, engineers face a common challenge: integrating high-performance sensors into increasingly limited installation spaces. Traditional sensing solutions often require valuable machine space, making system design more complex and less flexible.

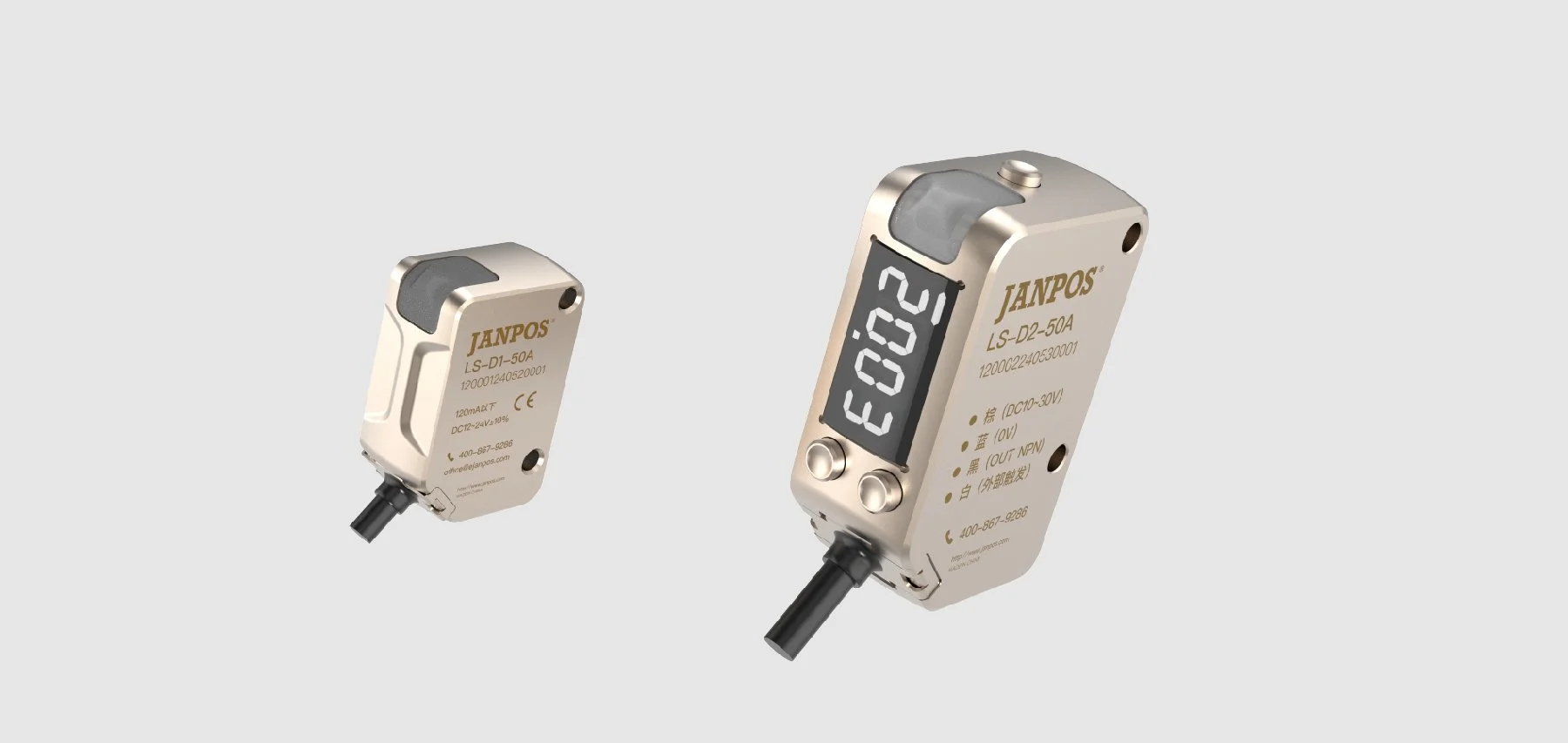

The Janpos LS-D1 Series Split Laser Distance Sensor was developed to address this challenge. Offering a smaller sensor head compared to the LS-D2 Series, the LS-D1 provides the same commitment to precision measurement while allowing easier integration into compact machinery, automated workstations, and space-constrained production environments.

Designed for Tight Spaces

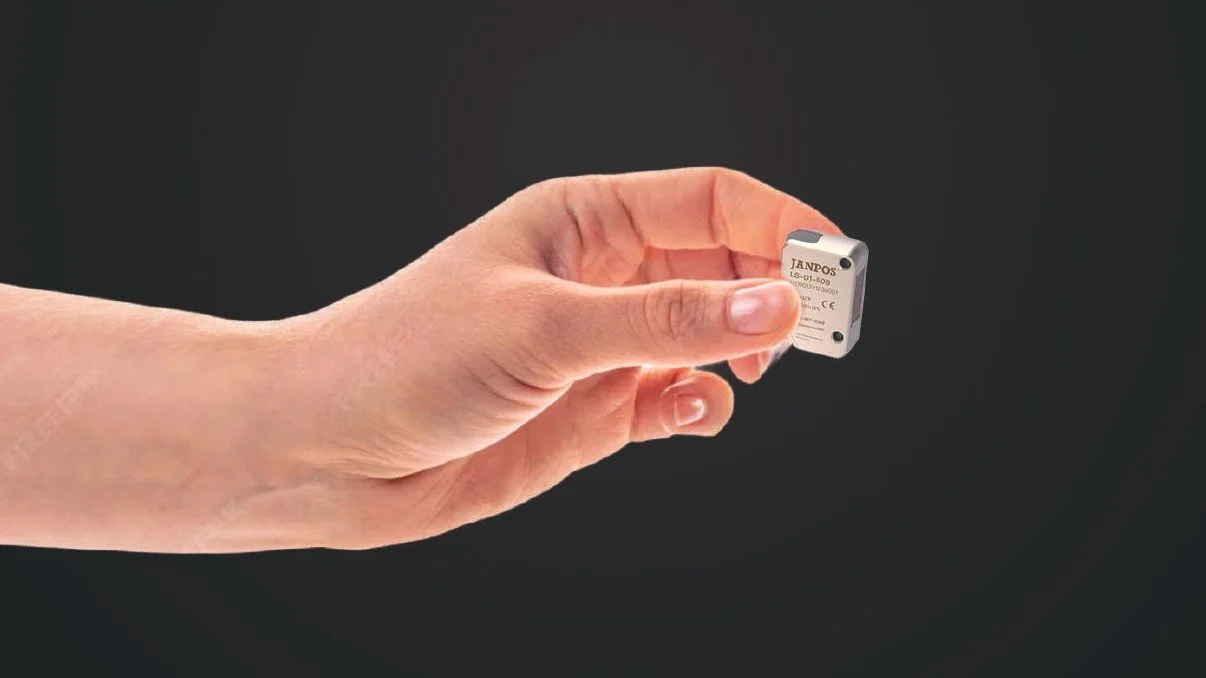

One of the key advantages of the LS-D1 Series is its compact design. In applications where every millimeter matters, the smaller sensor head enables installation in locations that may be difficult or impossible for larger sensors to access.

Whether integrated into assembly equipment, packaging machinery, inspection stations, or specialized automation systems, the LS-D1 helps manufacturers optimize machine layouts without compromising sensing capabilities. Its compact footprint also contributes to cleaner system designs and greater installation flexibility.

Split-Type Architecture for Greater Flexibility

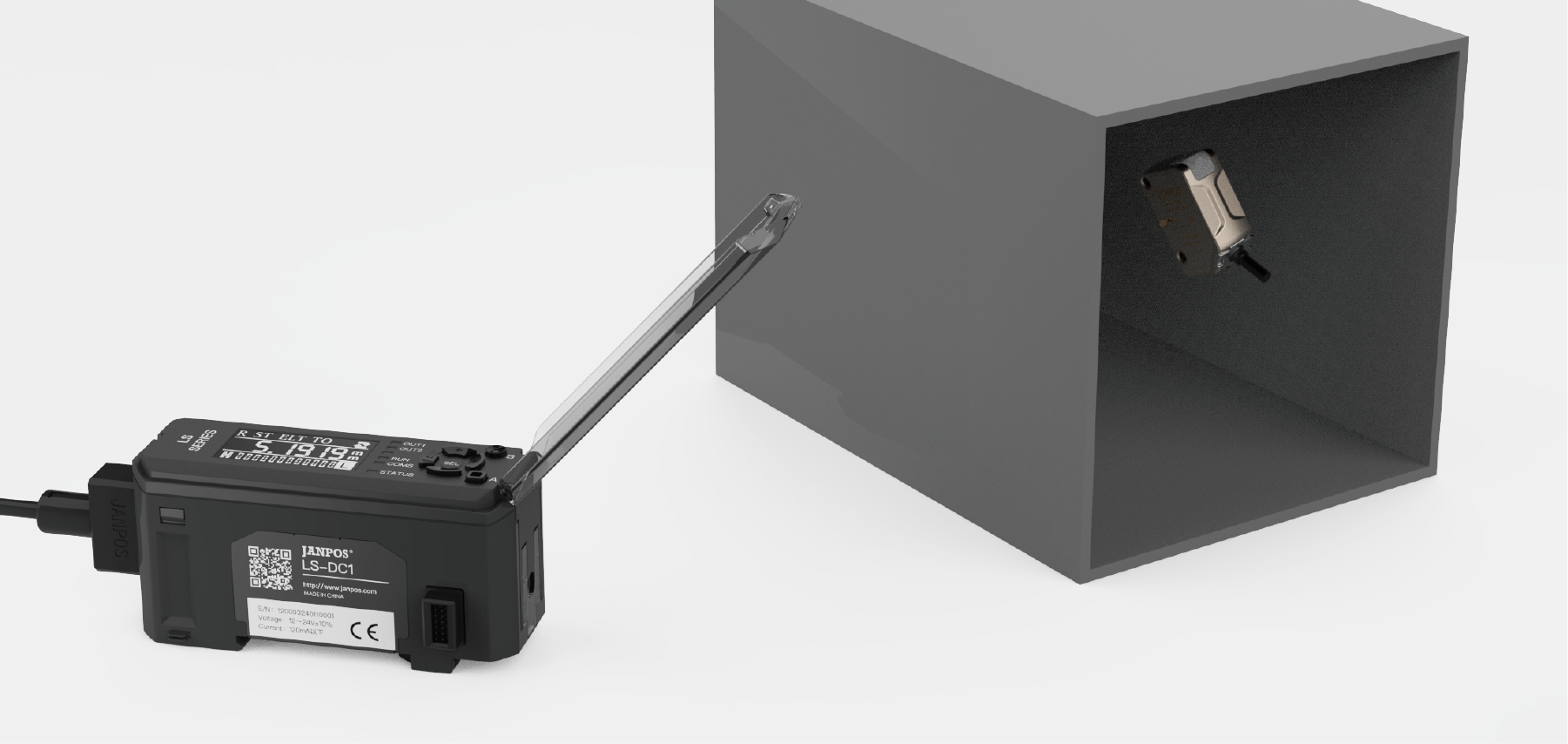

The LS-D1 features a split-type configuration, allowing the sensor head to be connected to a separate controller. This design provides several practical advantages, especially in complex industrial environments.

By separating the sensing and control components, operators can remotely configure and monitor the sensor through the controller, making installation and maintenance more convenient in confined or hard-to-reach locations. The system also supports RS-485 communication, enabling seamless integration into automated production systems and industrial networks.

Advanced Detection with Super-Resolution Technology

Industrial applications often involve challenging targets such as thin metal wires, reflective surfaces, resin materials, or irregular workpieces. Conventional sensors may struggle to maintain stable readings under these conditions.

To overcome these challenges, the LS-D1 Series is equipped with a super-resolution algorithm that automatically optimizes the measurement waveform according to the target surface condition. This enables stable and reliable detection across a wide range of materials while reducing the need for extensive manual adjustments.

The result is improved measurement consistency, reduced setup time, and enhanced process reliability.

Simplified Counting and Seam Detection

The LS-D1 Series also incorporates a Concave Distance Count Filter Function, designed to automatically recognize edges and output each detected concave distance in a single operation.

This intelligent function is particularly valuable for applications such as:

• Printed material counting

• Seam detection

• Edge recognition

• Gap inspection

• Presence verification

By simplifying setup procedures and automating threshold calculations, the LS-D1 helps reduce commissioning time while improving operational efficiency.

High Precision Measurement Performance

Despite its compact size, the LS-D1 delivers impressive measurement performance. The LS-D1-50B model offers:

• Measurement range: 25–50 mm

• Repeatability: ±20 μm

• Spot size: 0.18 mm × 0.15 mm

• Response times: 1 ms, 10 ms, and 50 ms

• IP65 protection rating for industrial environments

• NPN open collector output

• Red semiconductor laser (650 nm, Class 2)

These specifications make the sensor suitable for precision inspection and measurement tasks where accuracy and repeatability are critical.

Ideal for Diverse Industrial Applications

The versatility of the LS-D1 Series makes it suitable for a wide variety of manufacturing and quality control applications, including:

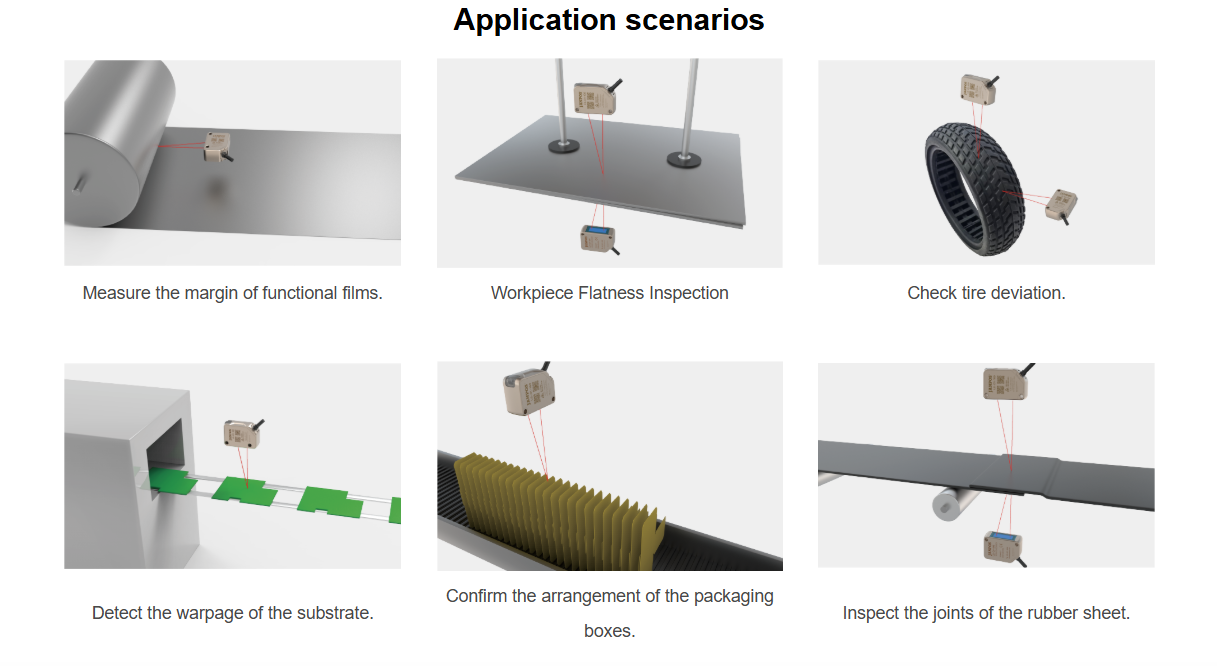

• Measuring residual amounts of functional films

• Workpiece flatness inspection

• Tire deflection measurement

• Substrate and PCB warpage detection

• Packaging box arrangement verification

• Rubber sheet seam inspection

Its ability to accurately detect small dimensional changes and surface variations helps manufacturers maintain product quality while improving process control.

Compact Sensor, Bigger Possibilities

When machine space is limited, sensor size can have a significant impact on overall equipment design. The Janpos LS-D1 Series combines a compact form factor with advanced laser measurement technology, enabling manufacturers to achieve precise, stable, and reliable measurements without sacrificing valuable installation space.

Compared to the larger LS-D2 Series, the LS-D1 offers a more compact solution for applications where flexibility, precision, and ease of integration are essential. Whether you're building new equipment or upgrading an existing production line, the LS-D1 delivers the performance needed for today's demanding automation environments.

Looking for a compact laser distance sensor for your automation application?

Logicsense provides Janpos sensing solutions to help manufacturers improve measurement accuracy, optimize machine design, and enhance production efficiency. Contact our team to learn more about the Janpos LS-D1 Series and find the right solution for your application.
